SJ90X30 single screw extruder for square pipe one set
1\Screw and barrel are each one set with material 38CrMoALA, nitrided depth is 0.5-0.7mm;
Screw forms : BM Separated
2\Barrel is heated by aluminum,5 heating zones and 5 cooling
zones, heating power is 5kw/zone;Blower cooling and cooling power is 0.25/zone
3\ The main motor uses the alternating current machine with the power is 90kw
4\Gearbox is one set with long-lifespan, low-noise, and high-screw
5\Automatic feeding dry machine is one set
6\Electric controlling part: contactor and relay are France Schneider, ,ABB inverter
Japan RKC temperature meter control.
Square pipe mould
1\Material: 45# stainless steel with high-quality, Wear-resistant, high smooth finish
2\Specification: according to customer's requirement.
Large diameter spiral winding pipe production machine main technique parameter
Model | pipe size | ||||||||||
Model | Length diameter ratio | Motor power | Heating power | ||||||||
SJBAX800 | φ300-800 | SJ90 | 30:1 | 75 | 30 | ||||||
SJ65 | 30:1 | 45 | 18 | ||||||||
SJBAX1200 | φ300-1200 | SJ90 | 34:1 | 110 | 36 | ||||||
SJ65 | 30:1 | 75 | 18 | ||||||||
SJBAX1500 | φ800-1600 | SJ100 | 34:1 | 160 | 36 | ||||||
SJ65 | 30:1 | 75 | 18 | ||||||||
SJBAX2200 | φ1500-2200 | SJ120 | 30:1 | 185 | 60 | ||||||
SJ65 | 30:1 | 75 | 36 | ||||||||
SJBAX3000 | φ2200-3000 | SJ150+SJ90 | 30:1 | 75 | 36 | ||||||

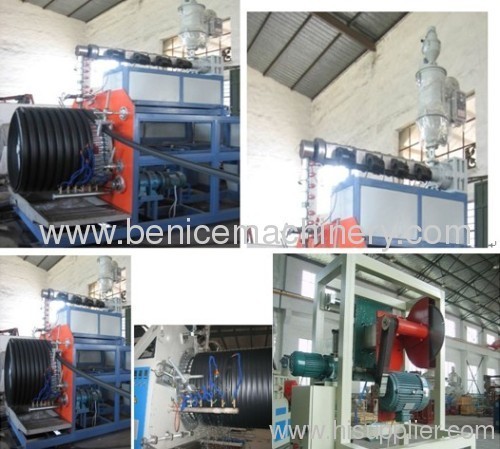

Machine lists for 200-800mm diameter PE hollow wall winding pipe production line
Single screw extruder ,model : SJ-90*30
| One set |
Auto drying ,material loading system | One set |
Extruding die head and mould | 200-800mm |
Profile pipe extruding die head | One set |
Mouth mould ,core bar | One set |
Vacuum sizing cooling system | One set |
Sizing sleeve | One set |
Sprinkling cooling system | One set |
Spiral forming machine | One set |
Steel sheet feeding device | One set |
Pipe spiral forming mould | One set |
Melt material extruding machine ,model:SJ-65*30 | One set |
Melt material extruding machine, SJ50*30 | One set |
Cutting device | One set |
Product stacker | One set |
Electricity control system | One set |
Pipes winding machines
